THE MACHINE THAT FORCES PHYSICS TO OBEY — AN ANATOMY OF ASML
ASML Chipmaker is a Dutch high-technology company headquartered in Veldhoven, the Netherlands, and the world’s dominant supplier of advanced lithography systems used to manufacture semiconductor chips.
Founded in 1984 as a joint venture between Philips and ASM International, ASML has grown into one of Europe’s most strategically important industrial firms. Today, it employs more than 40,000 people worldwide and operates across Europe, the United States, and Asia.
ASML’s machines enable the production of the smallest and most powerful microchips on Earth. Its flagship technology—Extreme Ultraviolet (EUV) lithography—allows chipmakers such as TSMC, Intel, and Samsung to print features only a few nanometers wide, making modern smartphones, artificial intelligence, data centers, and advanced computing possible.

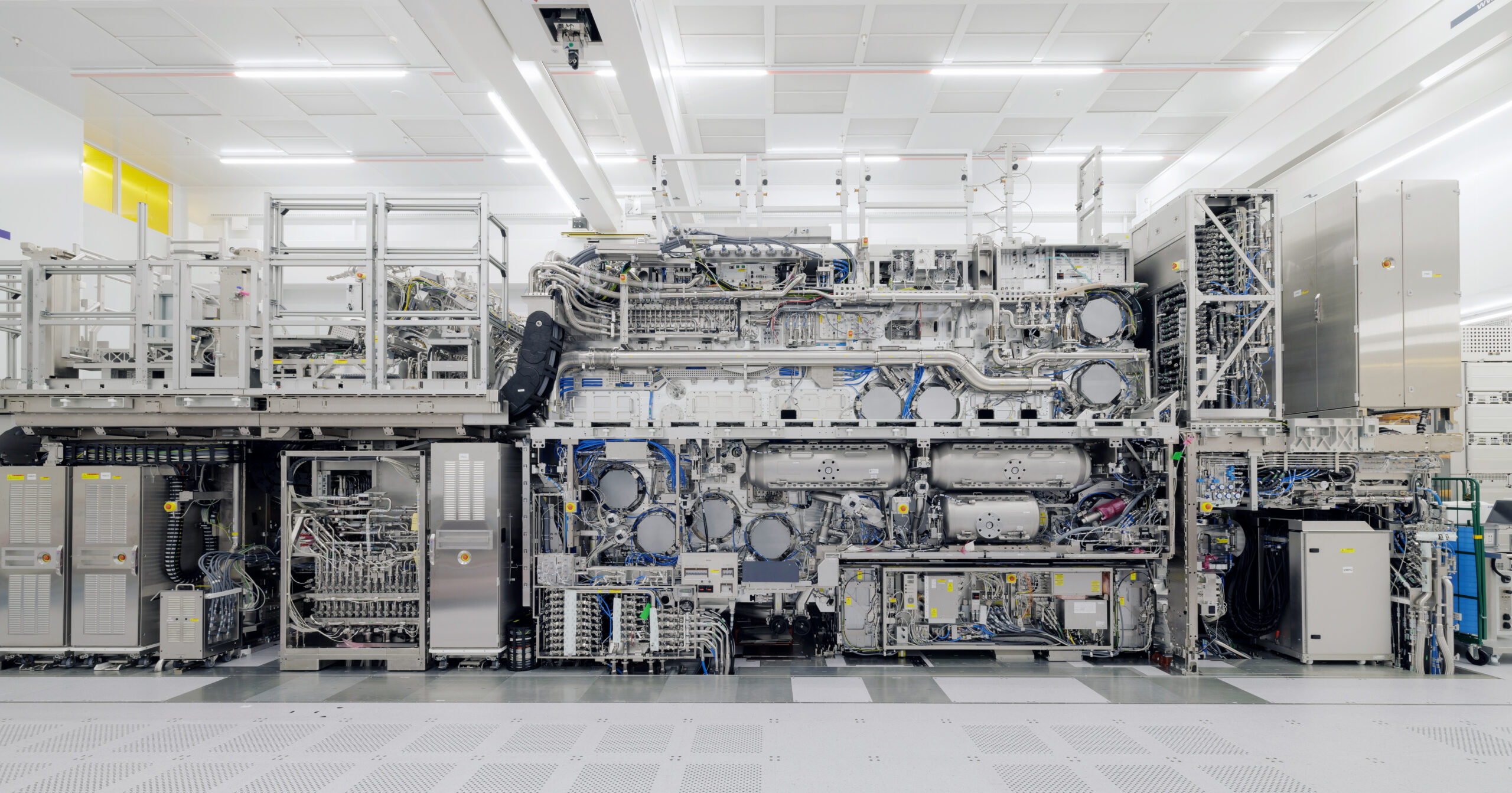

An ASML EUV lithography system is not a product.. It is condensed civilization.
Weighing more than 180 tons, containing over 100,000 components, thousands of sensors, and costing upward of €350 million, it is the most complex industrial machine ever placed into serial production.
But more importantly, it is a device that does not merely work within the laws of physics.
It negotiates with them.
HOW DOES IT WORK
Everything begins with light.
Not visible light. Not ultraviolet. But extreme ultraviolet (EUV) radiation at a wavelength of 13.5 nanometers.
This light does not exist naturally in usable form.
ASML creates it.
How it works:
ASML’s EUV illumination is generated via laser-produced plasma (LPP):
- Tin droplets (~25 μm diameter) are injected at ~50 kHz
- A pre-pulse laser shapes each droplet
- A high-power CO₂ laser (~30 kW average power) vaporizes the tin, forming plasma
- Highly ionized tin emits EUV radiation centered at 13.5 nm
The optical collection efficiency is extremely low (<0.1%), making source power and debris mitigation critical engineering challenges.
Magnetic fields and hydrogen flows are used to control ionized debris and protect downstream optics.
This subsystem alone combines plasma dynamics, laser physics, and materials degradation modeling.
This is laser-produced plasma physics, normally found in nuclear fusion laboratories.
Less than 0.1% of the input energy becomes usable EUV light.
Everything else becomes heat, debris, and radiation.
This subsystem alone represents an entire scientific discipline.
EUV photons are absorbed by ordinary air.
Completely.
Therefore the entire optical path operates in ultra-high vacuum (~10⁻⁶ mbar).
Meaning:
- no oxygen
- no moisture
- no dust particles
A single stray molecule in the wrong place can distort the image.
The machine is simultaneously:
- an optical system
- a vacuum chamber
- a cleanroom
Differential pumping prevents cross-contamination while allowing continuous wafer throughput.
Even nanogram-scale contamination can permanently degrade optical performance.
Reticle and Imaging System
Chip patterns are defined on EUV masks (reticles) with absorber stacks optimized for EUV reflectivity.
Key challenges include:
- stochastic photon shot noise
- mask 3D effects
- pellicle transparency and thermal loading
ASML uses computational lithography and inverse patterning algorithms to pre-distort mask geometries, compensating for optical and process nonlinearities.
At 13.5 nm, glass is useless. So ASML uses mirrors exclusively. But not ordinary mirrors.
Each mirror consists of:
- ~100 alternating layers of molybdenum and silicon
- layer thickness controlled to <0.1 nanometers
- reflectivity around 70%
After six mirrors, barely 5% of the original light remains.
Each surface is polished to within:
👉 ~50 picometers
(less than half the diameter of an atom)
This is quantum optics, materials science, and metrology combined. Only Carl Zeiss can manufacture these optics.
No one else comes close.
The chip design lives on a photomask (reticle). EUV light projects this pattern onto the silicon wafer.
But:
- EUV causes thermal distortion
- mirrors expand
- vibrations propagate
So every photon is corrected in real time using:
- laser interferometry
- piezo actuators
- AI feedback loops
Corrections happen thousands of times per second.
The machine always knows where every component is.
The dual-stage wafer platform operates using magnetically levitated actuators, enabling accelerations exceeding several g while maintaining positional stability of ~1–2 picometers. The silicon wafer moves at speeds up to 4 meters per second.
Yet positioning accuracy must be:
👉 ~1–2 picometers
Achieved through:
- magnetic levitation
- active vibration cancellation
- laser interferometers
- relativistic corrections (yes — time dilation matters)
Here classical mechanics, Einstein, signal theory, and chaos dynamics intersect.
This stage alone exceeds the precision of LIGO’s gravitational wave detectors.
Thermal expansion is one of the dominant error sources.
Temperature gradients are controlled to millikelvin levels across critical assemblies. Heat loads from EUV absorption are actively modeled and compensated using closed-loop thermal management. The system behaves as a tightly coupled thermodynamic network.
A temperature shift of:
👉 0.01°C
is already unacceptable.
Because materials expand.
So ASML employs:
- active heat extraction
- airflow modeling
- isolated thermal domains
The system behaves like a closed thermodynamic ecosystem.
Software integration is as critical as hardware precision. ASML platforms are governed by millions of lines of real-time software:
- model-predictive control loops
- machine learning for drift compensation
- predictive maintenance algorithms
- full-system digital twins
- real-time control
- fault prediction
- self-calibration
- machine learning optimization
Every exposure is measured, corrected, and re-optimized. Without this software, the machine would drift out of specification in seconds.
An EUV system is:
- plasma physics
- quantum optics
- ultra-precision mechanics
- materials science
- thermodynamics
- AI control
compressed into a single platform.
Or more bluntly:
ASML does not sell machines.
ASML sells controlled physics.
Its systems represent the convergence of plasma science, quantum optics, ultra-precision mechatronics, thermodynamics, and large-scale computational control—compressed into a single industrial platform.
Not because of patents.
Because it requires:
- four decades of accumulated expertise
- thousands of ultra-specialized suppliers
- rare scientific disciplines
- entire industrial ecosystems
This cannot be reverse-engineered.
China is trying.
The United States is protecting it.
Europe owns it.
ASML is not merely a company.
It is geopolitics.
If the Netherlands possesses one tangible proof that fundamental science pays off, it stands in Veldhoven. Check their site information https://www.asml.com/en
Not as symbolism.
But as a machine that forces atoms to behave.
